  • Bosch Performance Line motor and Kiox display
  • electrical support up to 25 km/h
  • integrated Powertube 500 battery (removable)
  • enviolo AUTOMATiQ stepless transmission
  • comfortable handlebar setup
  • Supernova front and rear light
  • Wingee mudguards with bracket for several bag systems
  • optional front rack with smart transporting possibilities
  • Bosch Performance Line motor and Kiox display
  • electrical support up to 25 km/h
  • integrated Powertube 500 battery (removable)
  • enviolo AUTOMATiQ stepless transmission
  • comfortable handlebar setup
  • Supernova front and rear light
  • Wingee mudguards with bracket for several bag systems
  • optional front rack with smart transporting possibilities
Schindelhauer

Heinrich Bosch Enviolo

€4,995.00 €5,449.00 8% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Obviously, we want you to be happy with every product you purchase from us, whether online or in-store. Please do not remove labels from products or dispose of packaging while you are making up your mind as this may affect your ability to return an item. If you choose to return an item it must reach us in original unused condition with all labels attached and any packaging that may have formed part of the item i.e. boxed goods. At all times your statutory rights are protected.

MAKING A RETURN

In the event that you are not satisfied or have changed your mind, you may return any item or items within 14 days of the dispatch date and, following inspection of the product, we will refund you for the cost of the item minus the outgoing delivery charge (minimum charge €4.50) via the original payment method used. Please note that the cost of the return is not the responsibility of Freewheeling. We reserve the right not to accept ‘change of mind returns outside of this period. Goods may also be returned in person to our store.

Returns should be posted to Online Returns, Freewheeling Ireland, 96 Pearse Street, Grand Canal Dock, Dublin 2

CANCELLATION POLICY

You can cancel or amend any order (or part of an order) placed with us, provided that the order has not yet entered the dispatch process. You will receive a full refund, including postage, via the original method of payment.

If your order, or part of it, has entered the dispatch process, you can refuse to accept the delivery of the item. It will be returned to us as undeliverable where we will refund the amount for the item however, you will still incur costs for the outward postage.

Heinrich Bosch Enviolo

Brand:Schindelhauer

Code:EB.22.HREV

Heinrich - The Multitalent


Automatic stepless transmission.

Imagine starts at traffic lights are just as relaxed as rides with tailwind. Whether it's uphill or downhill, you always pedal at your preferred cadence, because enviolo's continuously variable transmission works automatically. You have more freedom to perceive your surroundings and yet efficient power transmission is ensured in every situation. Experience Heinrich in this special version as our electrified all-rounder, which gives you a completely new feeling of driving dynamics.

Performance and comfort in harmony.

Thanks to very high-quality components, such as the low-maintenance Gates CDX belt drive and the powerful Bosch Performance Line engine, you can optimally transmit the full range of power to the road in various support levels. In order to provide you with a harmonious set-up for all your agile driving characteristics, wide tyres and an increased handlebar set-up ensure sufficient comfort.

Ready for every tour.

Heinrich stands for driving pleasure, but he has also taken on the task of fulfilling all practical requirements as a loyal companion. Your luggage will find room in rear transport bags or on the optional front luggage rack. Extremely sturdy Wingee mudguards not only keep out moisture and dirt, they also have an integrated Supernova lighting system. All cables and hydraulic brake lines disappear into the fork and frame.

To view the full specification on the Schindelhauer site, click below:-
Schindelhauer Bikes | Heinrich enviolo 1.0

For a limited time only, 20% Discount on Schindelhauer's in stock Bosch powered Heinrich and Hannah models that are ordered and paid for by the 30/06/2024.
Technical Information

FEATURE LIST

frameAluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded
forkHydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
headsetTange Seiki – integrated, 1 1/8-1.5

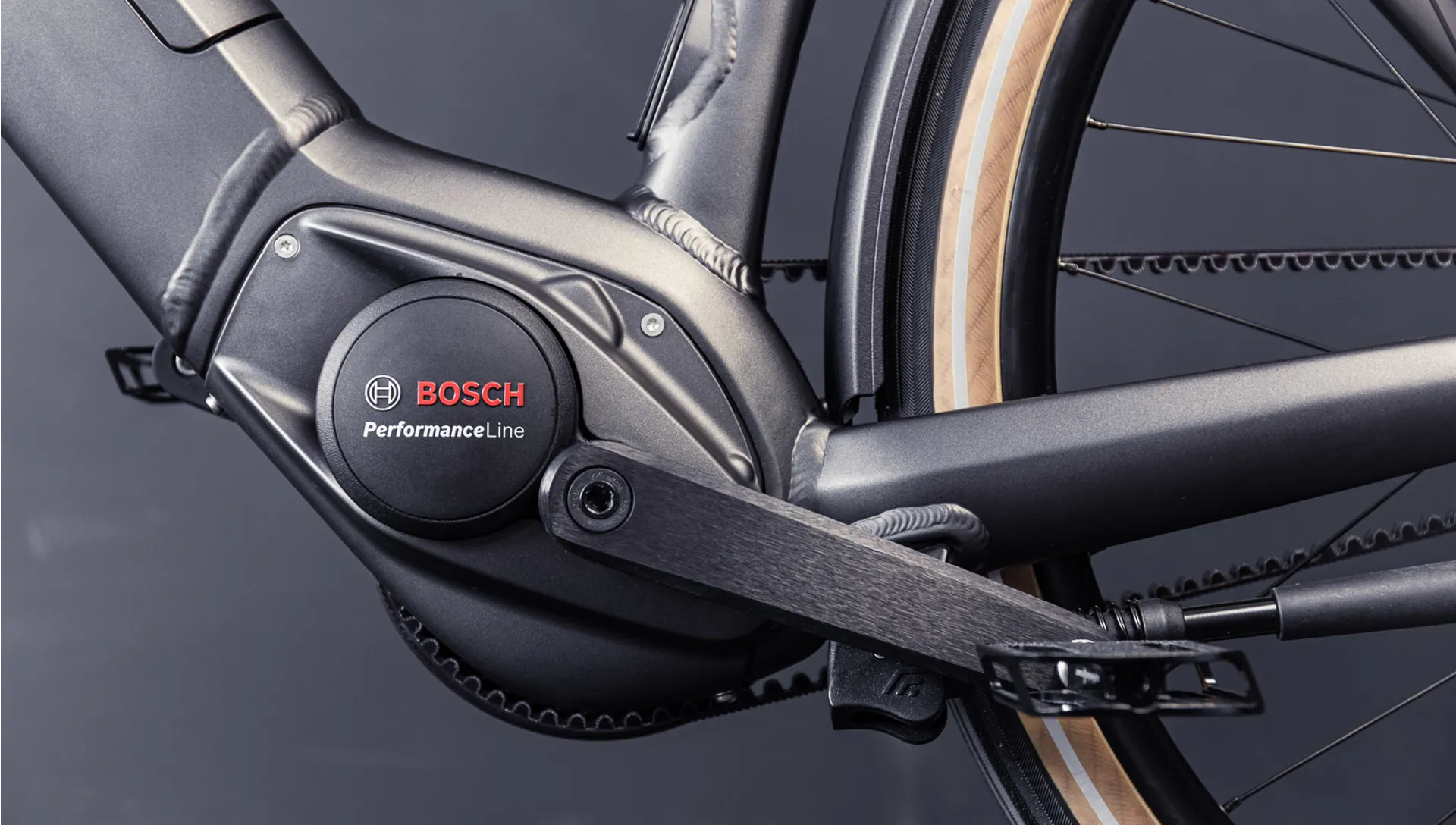

motorBosch – Performance Line (Cruise), power: 250 W, torque: 65 Nm, max. support up to 25 km/h

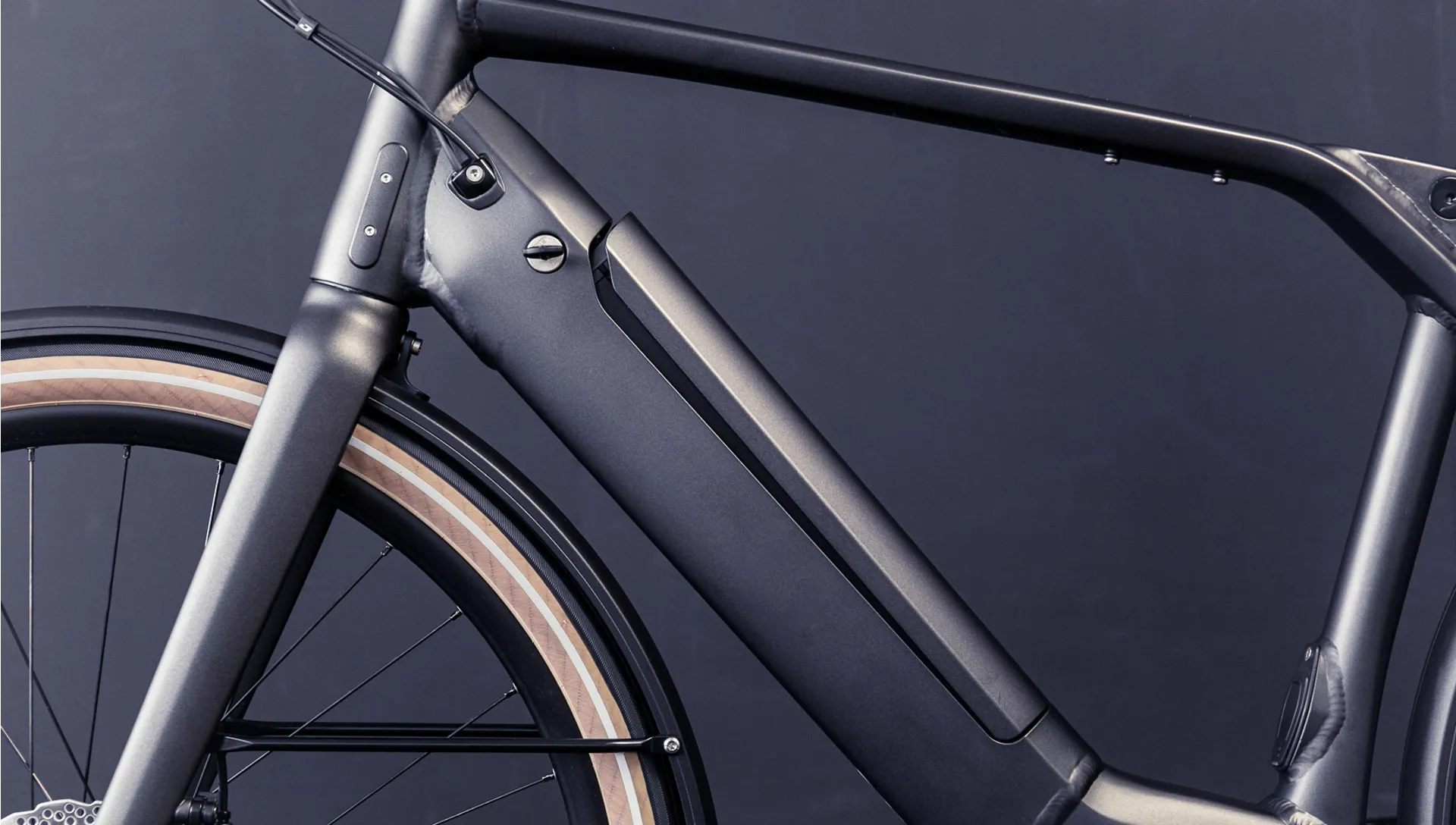

batteryBosch – Powertube 500, intube battery, energy: 500 Wh

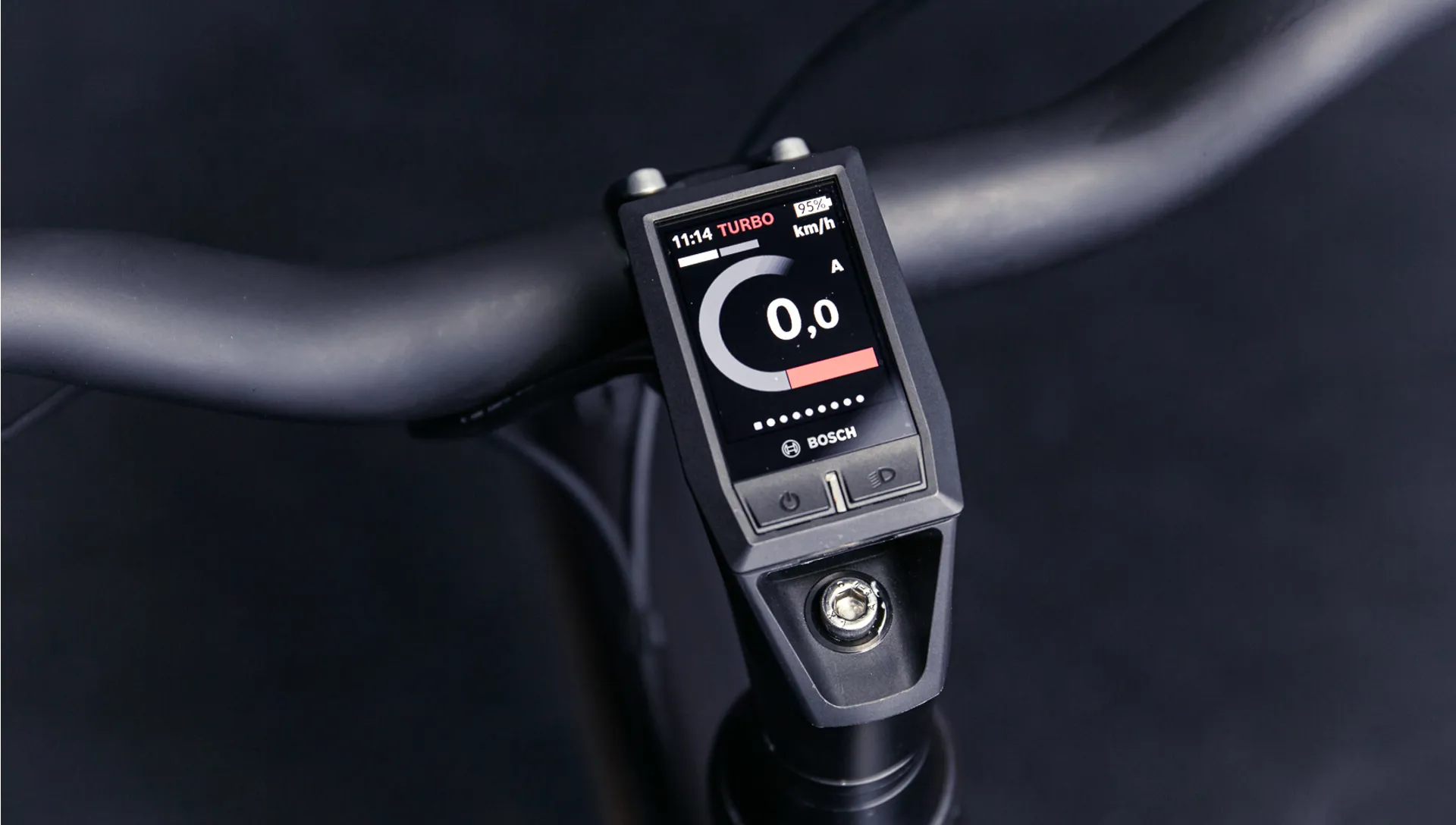

displayBosch – Kiox
power transmissionGates Carbon Drive – CDX, front 50T, rear 22T, belt 118T
gear shifttENVIOLO TR (steples shifting) - AUTOMATiQ (eShift)
crank SetMiranda – Delta
pedalsSchindelhauer – Urban Pedal, aluminium, CNC machined
stemSatori – Stealth, aluminium
handlebar

Satori – Seagull, aluminium

saddleFABRIC – Scoop Shallow Sport
seatpostSchindelhauer
gripsSchindelhauer (bolt-on)
wheelsSchindelhauer – high flange front hub disc, ENVIOLO TR, Alexrims – EXR25 rims with eyelets, Sapim – Race spokes, 3-cross and 2-cross laced
brakesShimano - MT401 disc brakes (hydraulic), 160 mm
tyresWTB – Horizon 47-584, with reflex stripes
weight24.7 kg (size M)
max. total weight155 kg (bike + rider + luggage)
mudguardsWingee – W52 Schindelhauer custom
pannier rackRear mudguard with integrated luggage stays
lightingSupernova – Mini 2 front light, E3 tail light
additional featuresHebie - side stand 663 FIX18
lock holster mounting possible
frame lock mounting possible
attaching a child seat onto the seat tube is possible
installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information
We reserve the right to make minor changes to features without prior notice.
Sizing Information

GEOMETRY

which frame size is right?

The frame sizes listed are only a guide. Finding the right sized frame for you depends on things like your height, personal preferences and riding style. We always recommend taking a test ride atone of our dealers.

size recommendation

frame sizeS
45
M
49
L
53
body height165-175175-185185-200
inseam length79-8484-8989-98

frame size45
S
49
M
53
L
A size c-t (mm)450490530
B top tube horiz. (mm)590630644
C head tube (mm)200200220
D chain stay (m)450450450
E head tube angle (°)72.572.572.5
F seat tube angle (°)737373
G wheelbase (mm)106711071122
H standover height (mm)784807840
I Reach404444452
J Stack609609628
headset1 1/8 - 1.51 1/8 - 1.51 1/8 - 1.5
seatpost size (mm)31.631.631.6
