| frame | Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, 5-year warranty |
| fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| headset | Tange Seiki integrated, tapered 1 1/8-1,5 |
| motor | Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h |
| battery | Bosch - Powertube 500, intube battery, energy: 500 Wh |
| display | Bosch - Purion |
| power transmission | Gates Carbon Drive - CDX, front 50T, rear 22T, belt 118T |
| gear shiftt | Shimano - Alfine 8-speed internal gear hub |
| crank Set | Miranda - Delta |

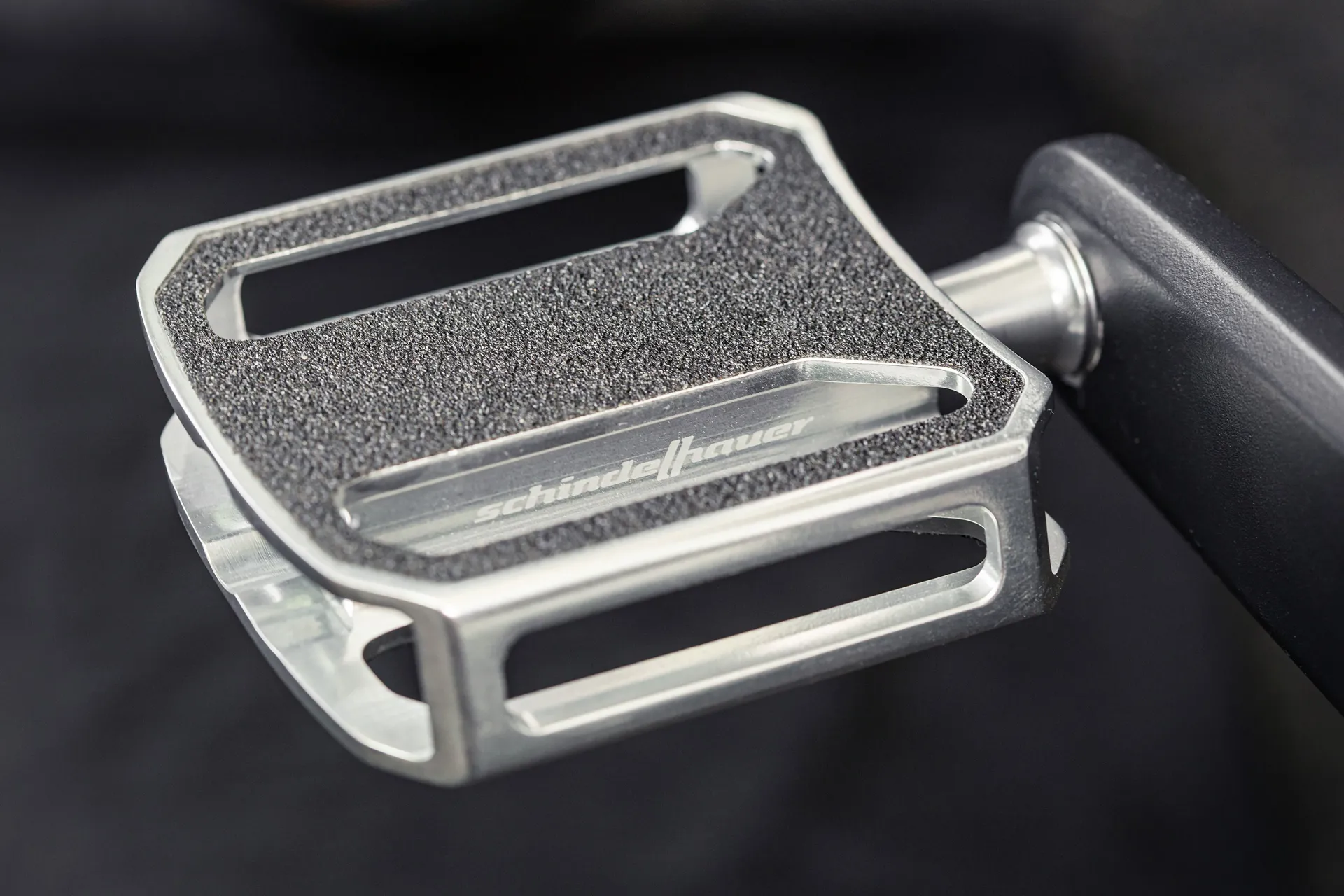

| pedals | Schindelhauer - Urban Pedal, aluminium, CNC machined |
| stem | Satori - Stealth, aluminium |
| handlebar | Satori - Noirette aluminium |
| saddle | Brooks - B17 |
| seatpost | Schindelhauer |
| grips | Schindelhauer - ergo leather grips |
| wheels | Schindelhauer - high flange front hub disc, Shimano - Alfine 8-speed internal gear hub, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross and 2-cross laced |
| brakes | Formula - CURA disc brakes (hydraulic), 160 mm |
| tyres | WTB - Horizon 47-584, with reflex stripes |
| weight | 23.7 kg (size M) |
| max. total weight | 155 kg (bike + rider + luggage) |
| mudguards | Wingee - W52 Schindelhauer custom |
| pannier rack | Schindelhauer - aluminium, frame mounted, with strap system, ready for Ortlieb Rack-Lock, rear mudguard with integrated luggage stays |
| lighting | Supernova - Mini 2 front light, E3 tail light |
| additional features | Hebie - side stand 663 FIX18 lock holster mounting possible frame lock mounting possible attaching a child seat onto the seat tube is possible installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information |
