  • MAHLE Ebikemotion 250-Watt motor
  • e-support up to 25 km/h
  • integrated 250Wh-battery
  • control at the touch of a button on the frame or via app
  • integrated LightSKIN lighting in handlebar and seatpost
  • Gates CDX belt and sprockets
  • can be fitted with mudguards & a rear pannier
  • weight: 13.4 kg
  • MAHLE Ebikemotion 250-Watt motor
  • e-support up to 25 km/h
  • integrated 250Wh-battery
  • control at the touch of a button on the frame or via app
  • integrated LightSKIN lighting in handlebar and seatpost
  • Gates CDX belt and sprockets
  • can be fitted with mudguards & a rear pannier
  • weight: 13.4 kg
Schindelhauer

Arthur Single Speed

€4,195.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Obviously, we want you to be happy with every product you purchase from us, whether online or in-store. Please do not remove labels from products or dispose of packaging while you are making up your mind as this may affect your ability to return an item. If you choose to return an item it must reach us in original unused condition with all labels attached and any packaging that may have formed part of the item i.e. boxed goods. At all times your statutory rights are protected.

MAKING A RETURN

In the event that you are not satisfied or have changed your mind, you may return any item or items within 14 days of the dispatch date and, following inspection of the product, we will refund you for the cost of the item minus the outgoing delivery charge (minimum charge €4.50) via the original payment method used. Please note that the cost of the return is not the responsibility of Freewheeling. We reserve the right not to accept ‘change of mind returns outside of this period. Goods may also be returned in person to our store.

Returns should be posted to Online Returns, Freewheeling Ireland, 96 Pearse Street, Grand Canal Dock, Dublin 2

CANCELLATION POLICY

You can cancel or amend any order (or part of an order) placed with us, provided that the order has not yet entered the dispatch process. You will receive a full refund, including postage, via the original method of payment.

If your order, or part of it, has entered the dispatch process, you can refuse to accept the delivery of the item. It will be returned to us as undeliverable where we will refund the amount for the item however, you will still incur costs for the outward postage.

Arthur Single Speed

Season:2022

Brand:Schindelhauer

Code:SC.AR

Arthur – the Avantgardist

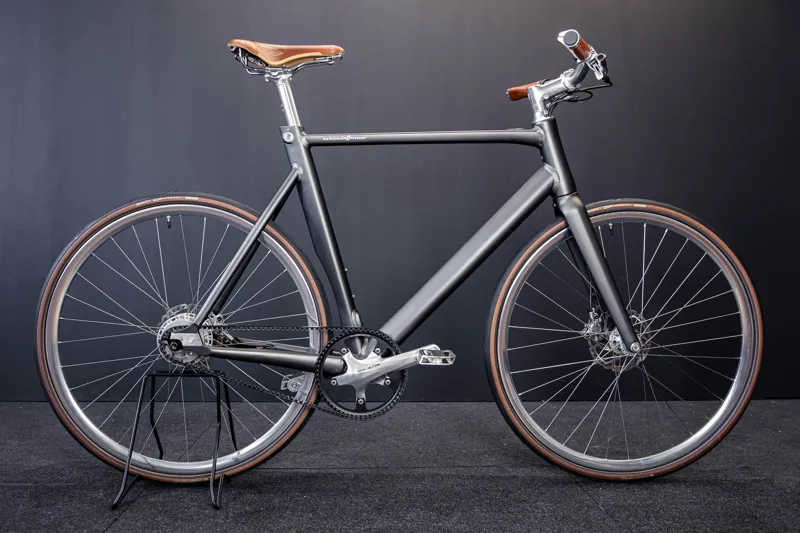

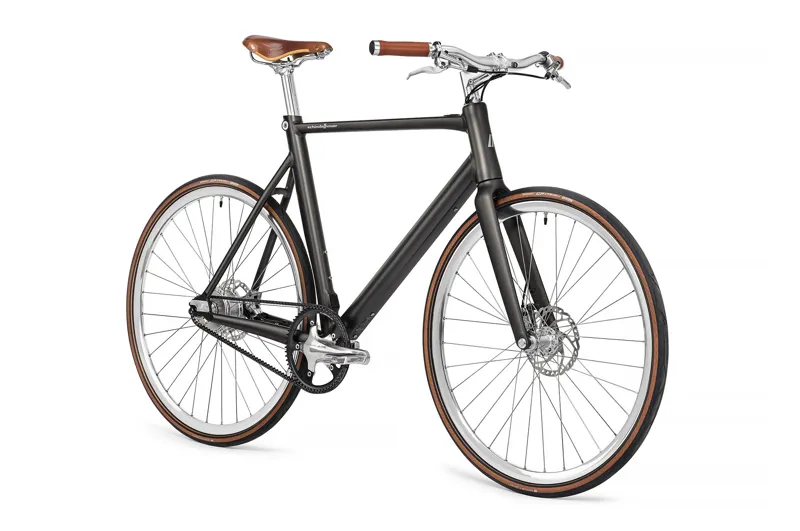

A classic Schindelhauer Bike - but motorized. Arthur's design means that you cannot tell it apart from any Schindelhauer Bike without an e-motor. It is the ideal E-Bike for cyclists, who want to tackle city cycling with comfort and agility with an extra push.

The 250-Watt rear motor powers the bike, while the battery is concealed in the downtube.Arthur ’s geometry combines a sportive yet comfortable riding experience and, at 13.4 kg, comes without any unnecessary weight. Arthur offers everything you need for city cycling, including a LightSKIN lighting system integrated into the seat post and handlebar as well as an hydraulic disc brake system from Shimano.

The level of assistance provided by the electric motor can be selected via the iWoc ONE button integrated into the top tube, which also displays the battery level via colour-LEDs. This and many more features, such as speed, weather data and GPS-navigation can be displayed via the MAHLE Ebikemotion smartphone app. Internal cable routing through the frame and fork give Arthur a sleek, harmonious look. Enjoy the dynamic riding experience on your way to work or out into the countryside - with or without e-support.

To view the full specification on the Schindelhauer site, click below:-
Schindelhauer Bikes | Arthur
Technical Information

FEATURE LIST

frameAluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, smooth welded
forkHydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
headsetTange Seiki integrated, tapered 1 1/8-1,5

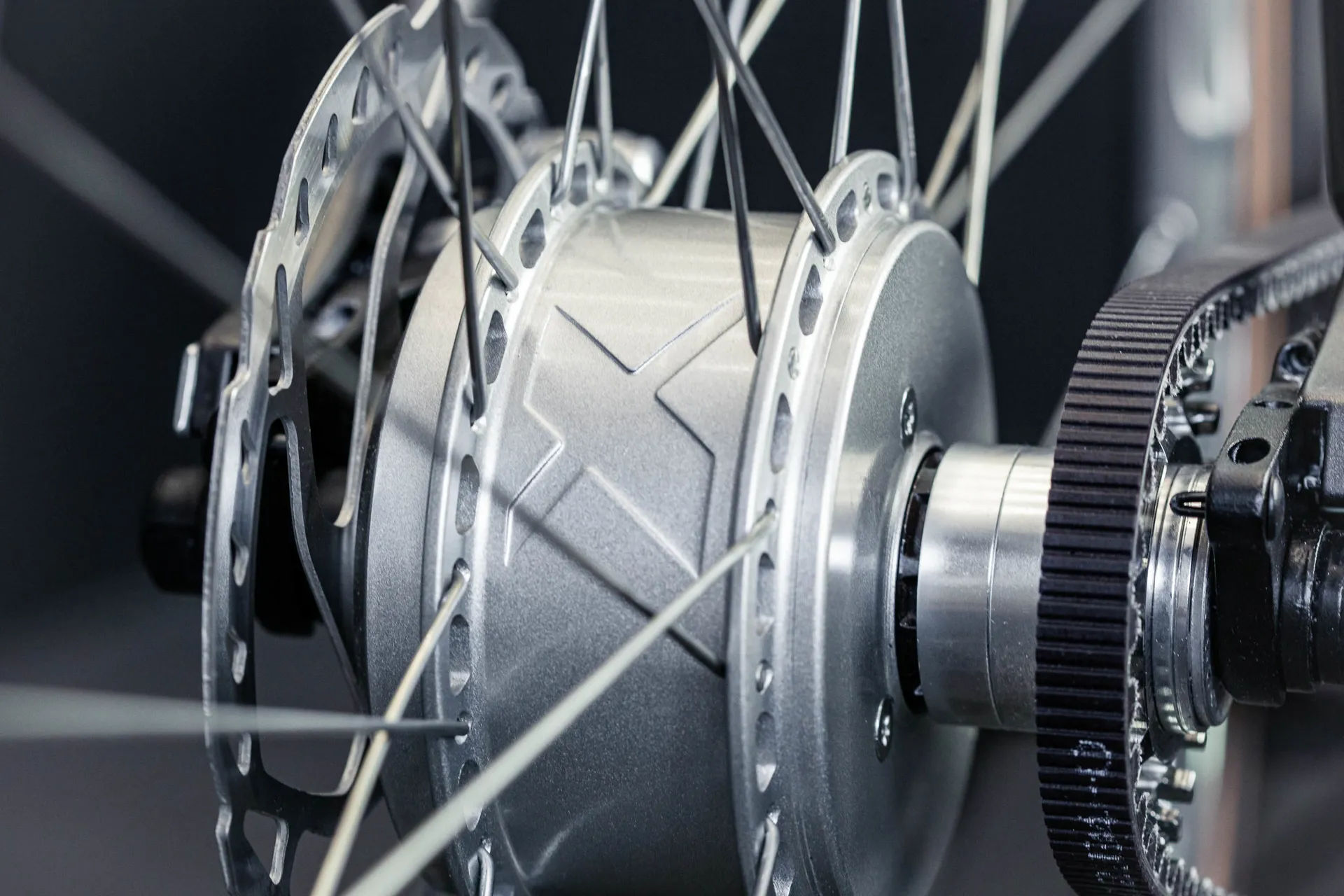

motorMahle-ebikemotion - Motor HUB Drive M1, power: 250 W, torque: ca. 40 Nm, max. support up to 25 km/h
batteryMahle-ebikemotion - intube battery, energy: 250 Wh
displayMahle-ebikemotion - iWoc ONE

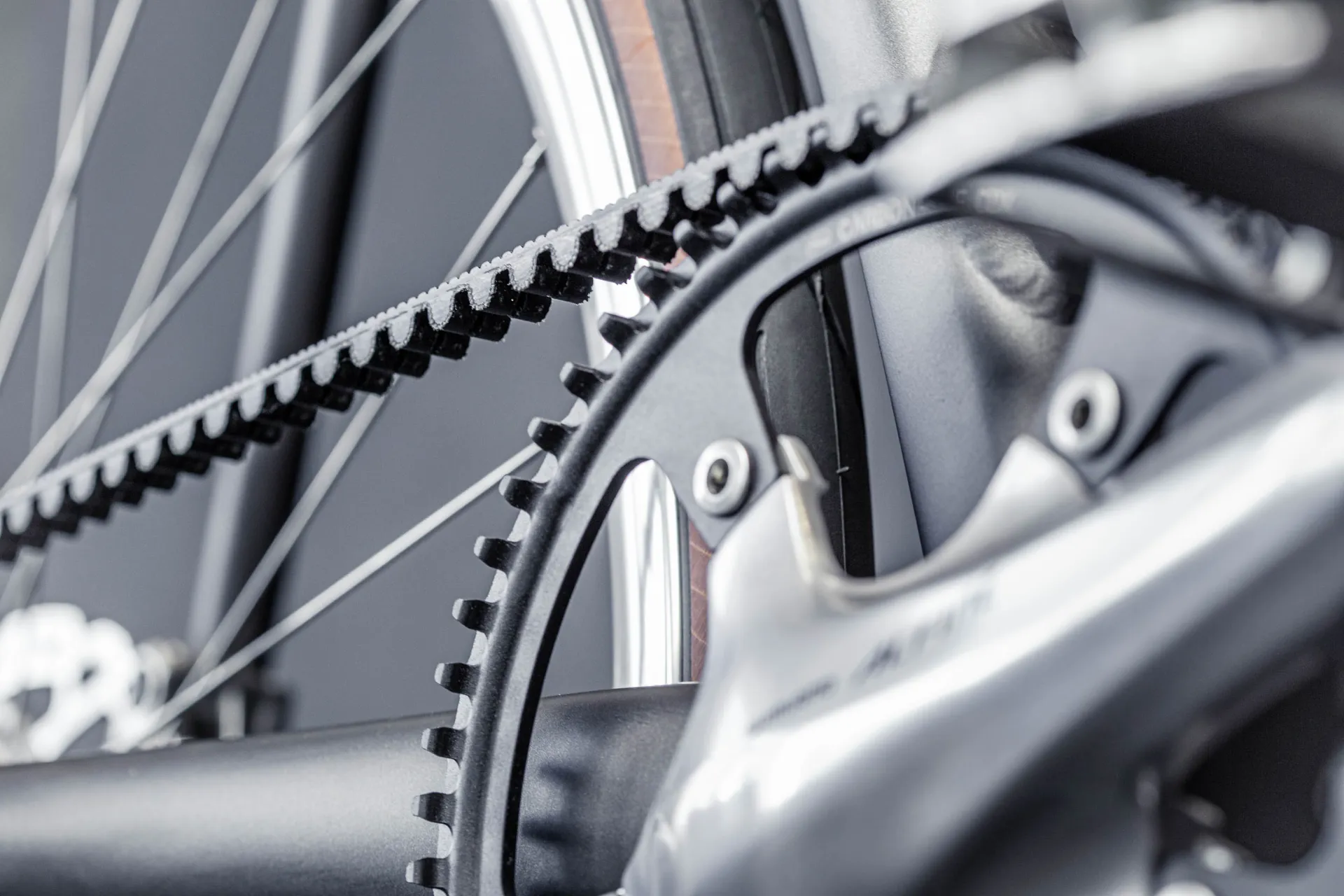

power transmissionGates Carbon Drive - CDX, front 60T, rear 22T, belt 118T
gear shiftt--
bottom brackettShimano - Press-Fit
crank setShimano - Alfine Hollowtech II
pedalsSchindelhauer - Urban Pedal, aluminium, CNC machined
stemSatori - Stealth, aluminium
handlebar

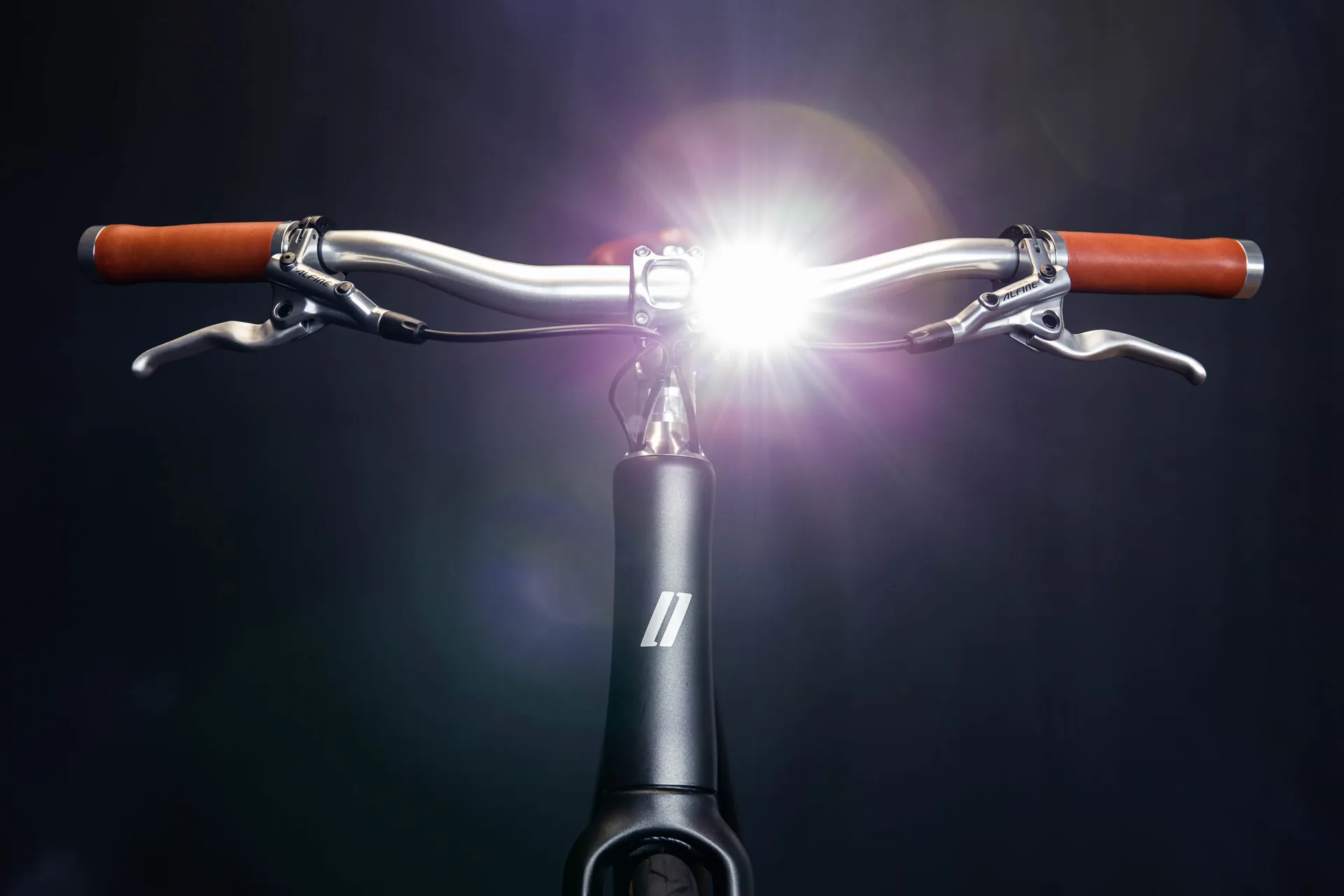

LightSKIN - handlebar integrated LED-front-light

saddleBrooks - Swift
seatpostLightSKIN - seat post integrated LED-rear-light
gripsSchindelhauer - ergo leather grips
wheelsSchindelhauer - high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims - CXD26 rims with eyelets, Sapim - Race spokes, 3-cross and 2-cross laced
brakesFormula - CURA disc brakes (hydraulic), 160 mm
tyresContinental - GP Urban Classic 35-622
weight13.4 kg (size M)
max. total weight130 kg (bike + rider + luggage)
mudguardsmudguard mounting possible
pannier rackrear pannier rack mounting possible
lightingLightSKIN - handlebar integrated LED-front-light, seat post integrated LED-rear-light
additional featuresside stand mounting possible
mounting points on seat tube for bottle cage, lock holder or MAHLE range extender battery
We reserve the right to make minor changes to features without prior notice.
Sizing Information

GEOMETRY

which frame size is right?

The frame sizes listed are only a guide. Finding the right sized frame for you depends on things like your height, personal preferences and riding style. We always recommend taking a test ride atone of our dealers.

size recommendation

frame sizeS
53
M
56
L
59
XL
62
body height167-175175-183183-191191-200
inseam length80-8484-8888-9292-100

frame size53
S
56
M
59
L
62
XL
A size c-t (mm)530560590620
B top tube horiz. (mm)560580600610
C head tube (mm)150165180200
D chain stay (m)418418418418
E head tube angle (°)72.572.572.572.5
F seat tube angle (°)73737373
G wheelbase (mm)1018103710581068
H standover height (mm)803825846870
I Reach401415431435
J Stack557571586605
headset1 1/8 - 1.51 1/8 - 1.51 1/8 - 1.51 1/8 - 1.5
seatpost size (mm)31.631.631.631.6
Geometrie
