  • Pinion P-Line:9-, 12- and 18-speed
  • Pinion C-Line:6-, 9- and 12-speed
  • made to order and fully customisable
  • low bottom bracket, long top tube and head tube for a sporty riding position also suitable for touring
  • hydraulic disc brakes
  • internal cable routing
  • Pinion P-Line:9-, 12- and 18-speed
  • Pinion C-Line:6-, 9- and 12-speed
  • made to order and fully customisable
  • low bottom bracket, long top tube and head tube for a sporty riding position also suitable for touring
  • hydraulic disc brakes
  • internal cable routing
Schindelhauer

Wilhelm

€3,995.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Obviously, we want you to be happy with every product you purchase from us, whether online or in-store. Please do not remove labels from products or dispose of packaging while you are making up your mind as this may affect your ability to return an item. If you choose to return an item it must reach us in original unused condition with all labels attached and any packaging that may have formed part of the item i.e. boxed goods. At all times your statutory rights are protected.

MAKING A RETURN

In the event that you are not satisfied or have changed your mind, you may return any item or items within 14 days of the dispatch date and, following inspection of the product, we will refund you for the cost of the item minus the outgoing delivery charge (minimum charge €4.50) via the original payment method used. Please note that the cost of the return is not the responsibility of Freewheeling. We reserve the right not to accept ‘change of mind returns outside of this period. Goods may also be returned in person to our store.

Returns should be posted to Online Returns, Freewheeling Ireland, 96 Pearse Street, Grand Canal Dock, Dublin 2

CANCELLATION POLICY

You can cancel or amend any order (or part of an order) placed with us, provided that the order has not yet entered the dispatch process. You will receive a full refund, including postage, via the original method of payment.

If your order, or part of it, has entered the dispatch process, you can refuse to accept the delivery of the item. It will be returned to us as undeliverable where we will refund the amount for the item however, you will still incur costs for the outward postage.

Wilhelm

Season:2022

Brand:Schindelhauer

Code:FR.22.WC12

Wilhelm – Performance Perfection


Sporty, individually designed and technically innovative - Wilhelm is our top model. At its heart is the Pinion gearbox. As the current reference in terms of gears, the P-Line is available with a maximum of 18 evenly graduated gears at a total transmission ratio of up to 636%. Alternatively, Wilhelm can be configured with the C-Line in a lightweight magnesium housing, which is available with 6, 9 or 12 gears. With the Pinion gearbox, each gear conveys the directness of a singlespeed transmission. The central position of the gearbox ensures that the bike is optimally balanced. High-quality hydraulic disc brakes, fine Brooks leather saddles and a finely toothed rear hub meet the highest quality standards.

Wilhelm can be fully customised according to customers’ requests.

Technical Information

FEATURE LIST


frame

Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, Pinion bracket

fork

Aluminium fork (tapered), 15mm through-axle, for flat mount disc brakes

headset

Tange Seiki - integrated, 1 1/8-1.5

power transmission

Gates Carbon Drive - CDX, front 39T, rear 28T, belt 111T

gear shiftPinion gear box P-Line 9-/12-/18-speed orPinion gear box C-Line 6-/9-/12-speed
crank set

Pinion

bottom bracket

Pinion

pedals

Schindelhauer - Urban Pedal, aluminium, CNC machined

stem

Schindelhauer

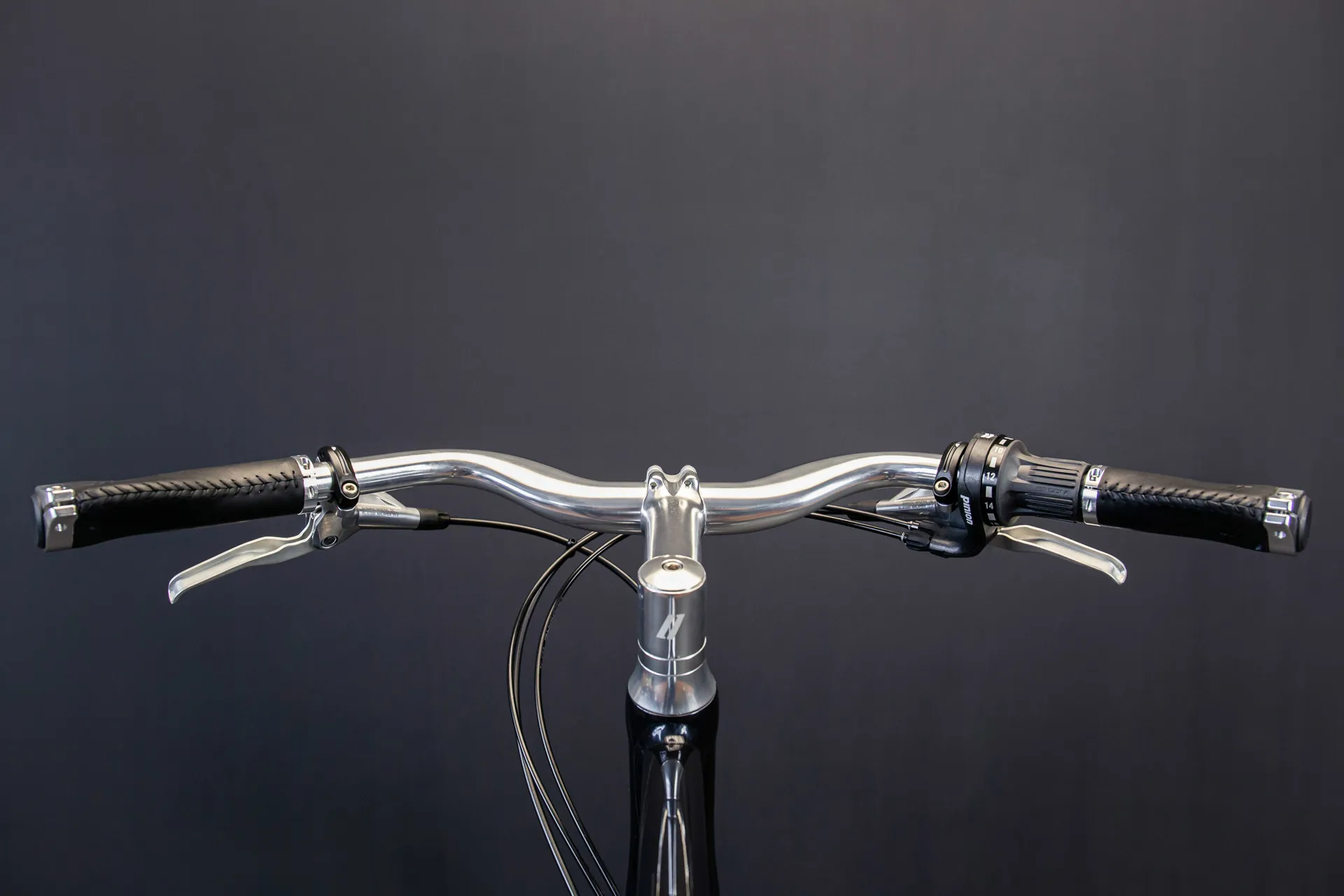

handlebar

Satori - Noirette, aluminium

saddleBrooks - Swallow Classic (P-Line), Brooks -B17 (C-Line)
seatpostSchindelhauer
gripsSchindelhauer - ergo leather grips
wheelsSchindelhauer high flange front hub disc, Schindelhauer – rear hub disc (fine toothed), Alexrims – CXD26 rims with eyelets, Sapim – Race spokes, 3-cross and 3-cross laced
brakes

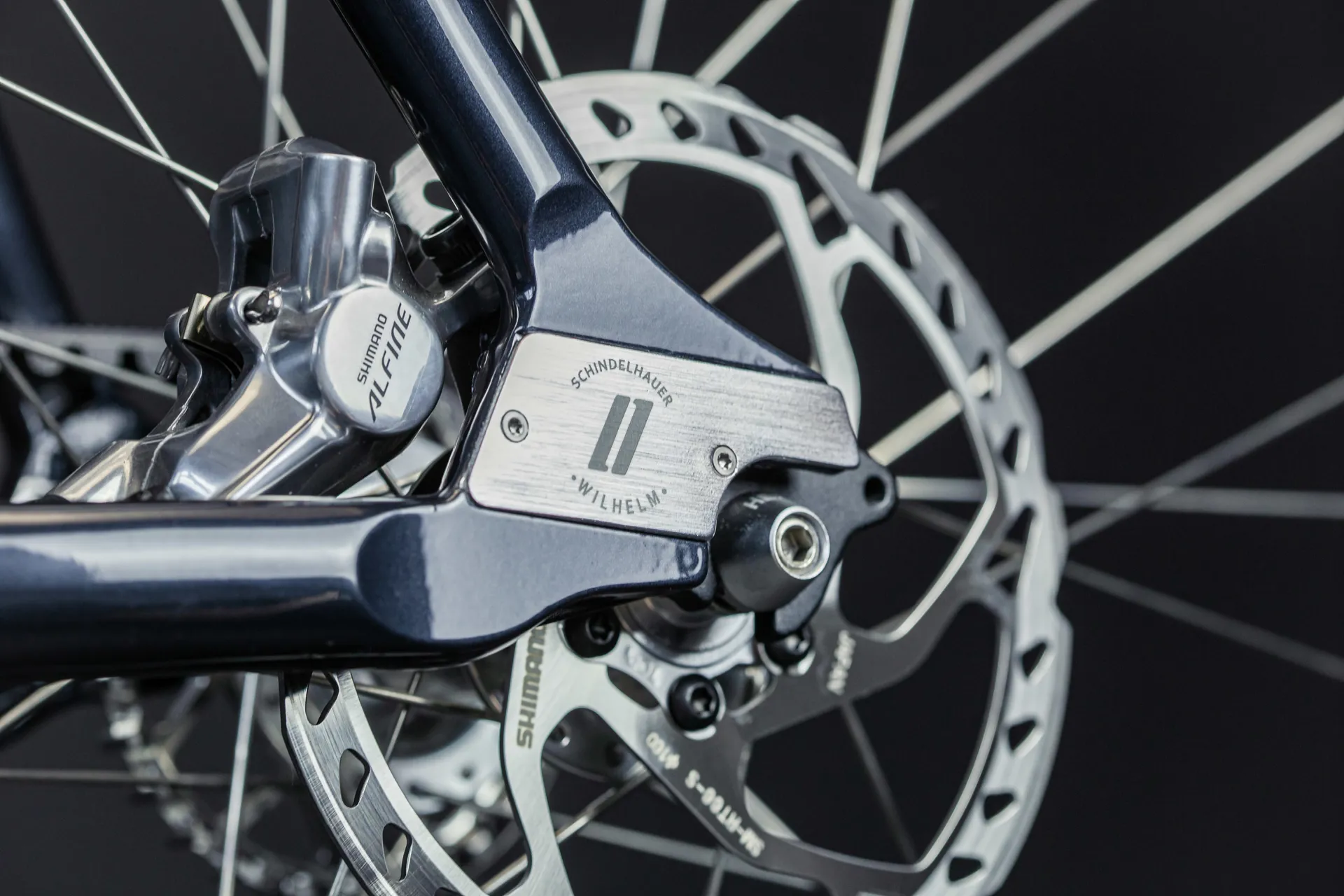

Shimano - Alfine S7000 disc brake (hydraulic), 160mm

tyresContinental - GP Urban Classic 35-622
weight12.0 kg / 12.3 kg / 12.6 kg
max. total weight120 kg (bike + rider + luggage)
mudguardsmudguard mounting possible
pannier rackfront- and rear pannier rack mounting possible
lightingoptional
Sizing Information

GEOMETRY

which frame size is right?

The frame sizes listed are only a guide. Finding the right sized frame for you depends on things like your height, personal preferences and riding style. We always recommend taking a test ride atone of our dealers.

size recommendation

frame sizeXS
50
S
53
M
56
L
59
XL
62
body height151-160161-170171-179180-188189-198
inseam length73-7778-8283-8687-9192-95
Professional Opinion

frame size50
XS
53
S
56
M
59
L
62
XL
A size c-t (mm)500530560590620
B top tube horiz. (mm)540550560580610
C head tube (mm)130145160175195
D chain stay (m)422422422422422
E head tube angle (°)72.572.572.572.572.5
F seat tube angle (°)7473.5737372.5
G wheelbase (mm)10131018102410441069
H standover height (mm)790811831852875
I Reach395396397413432
J Stack538552566581600
headset1 1/8 - 1.51 1/8 - 1.51 1/8 - 1.51 1/8 - 1.51 1/8 - 1.5
seatpost size (mm)27.227.227.227.227.2
